Lecture 4 --- Pointers, Arrays, & Pointer Arithmetic
- Pointers store memory addresses.
- They can be used to access the values stored at their stored memory address.
- They can be incremented, decremented, added, and subtracted.
- Dynamic memory is accessed through pointers.
- Pointers are also the primitive mechanism underlying vector iterators, which we have used with std::sort and will use more extensively throughout the semester.
4.1 Pointer Example
- Consider the following code segment:
float x = 15.5;
float *p; /* equiv: float* p; or float * p; */
p = &x;
*p = 72;
if ( x > 20 )
cout << "Bigger\n";
else
cout << "Smaller\n";
The output is Bigger because x == 72.0. What’s going on?
4.2 Pointer Variables and Memory Access

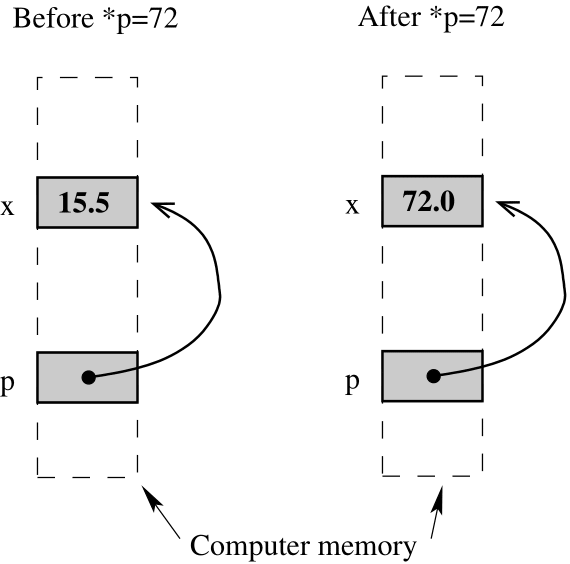

- x is an ordinary float, but p is a pointer that can hold the memory address of a float variable. The difference is explained in the picture above.
- Every variable is attached to a location in memory. This is where the value of that variable is stored. Hence, we draw a picture with the variable name next to a box that represents the memory location.
- Each memory location also has an address, which is itself just an index into the giant array that is the computer memory.
- The value stored in a pointer variable is an address in memory. The statement p = &x; takes the address of x’s memory location and stores it (the address) in the memory location associated with p.
- Since the value of this address is much less important than the fact that the address is x’s memory location, we depict the address with an arrow.
- The statement: *p = 72; causes the computer to get the memory location stored at p, then go to that memory location, and store 72 there. This writes the 72 in x’s location.
Note: *p is an l-value in the above expression.
- play this animation.
4.3 Defining Pointer Variables
- In the example below, p, s and t are all pointer variables (pointers, for short), but q is NOT. You need the * before each variable name.
int * p, q;
float *s, *t;
- There is no initialization of pointer variables in this two-line sequence, so the statement below is dangerous, and may cause your program to crash! (It won’t crash if the uninitialized value happens to be a legal address.)
*p = 15;
- play this animation.
4.4 Operations on Pointers
- The unary (single argument/operand) operator * in the expression *p is the “dereferencing operator”. It means “follow the pointer” *p can be either an l-value or an r-value, depending on which side of the = it appears on.
- The unary operator & in the expression &x means “take the memory address of.”
- Pointers can be assigned. This just copies memory addresses as though they were values (which they are). Let’s work through the example below (and draw a picture!). What are the values of x and y at the end?
float x=5, y=9;
float *p = &x, *q = &y;
*p = 17.0;
*q = *p;
q = p;
*q = 13.0;
-
play this animation.
-
Assignments of integers or floats to pointers and assignments mixing pointers of different types are illegal. Continuing with the above example:
int *r;
r = q; // Illegal: different pointer types;
p = 35.1; // Illegal: float assigned to a pointer
- Comparisons between pointers of the form if ( p == q ) or if ( p != q ) are legal and very useful! Less than and greater than comparisons are also allowed. These are useful only when the pointers are to locations within an array.
4.5 Exercise
- Draw a picture for the following code sequence. What is the output to the screen?
int x = 10, y = 15;
int *a = &x;
cout << x << " " << y << endl;
int *b = &y;
*a = x * *b;
cout << x << " " << y << endl;
int *c = b;
*c = 25;
cout << x << " " << y << endl;
- play this animation.
4.6 Null Pointers
- Like the int type, pointers are not default initialized. We should assume it’s a garbage value, leftover from the previous user of that memory.
- Pointers that don’t (yet) point anywhere useful are often explicitly assigned to NULL.
– NULL is equal to the integer 0, which is a legal pointer value (you can store NULL in a pointer variable).
– But NULL is not a valid memory location you are allowed to read or write. If you try to dereference or
follow a NULL pointer, your program will immediately crash. You may see a segmentation fault, a bus
error, or something about a null pointer dereference.
– NOTE: In C++11, we are encouraged to switch to use nullptr instead of NULL or 0, to avoid some
subtle situations where NULL is incorrectly seen as an int type instead of a pointer. For this course we
will assume NULL and nullptr are equivalent.
– We indicate a NULL or nullptr value in diagrams with a slash through the memory location box.
- Comparing a pointer to NULL is very useful. It can be used to indicate whether or not a pointer variable is pointing at a useable memory location. For example,
if ( p != NULL )
cout << *p << endl.
tests to see if p is pointing somewhere that appears to be useful before accessing and printing the value stored at that location.
- But don’t make the mistake of assuming pointers are automatically initialized to NULL
4.7 Arrays
- Here’s a quick example to remind you about how to use an array:
const int n = 10;
double a[n];
int i;
for ( i=0; i<n; ++i )
a[i] = sqrt( double(i) );
-
Remember: the size of array a is fixed at compile time. STL vectors act like arrays, but they can grow and shrink dynamically in response to the demands of the application.
-
play this animation.
4.8 Sorting an Array
- Arrays may be sorted using std::sort, just like vectors. Pointers are used in place of iterators. For example, if a is an array of doubles and there are n values in the array, then here’s how to sort the values in the array into increasing order:
std::sort( a, a+n );
