Lecture 4 --- Pointers, Arrays, & Pointer Arithmetic

Pointers store memory addresses.
They can be used to access the values stored at their stored memory address.
They can be incremented, decremented, added, and subtracted.
Dynamic memory is accessed through pointers.
Pointers are also the primitive mechanism underlying vector iterators, which we have used with std::sort and will use more extensively throughout the semester.

4.1 Pointer Example

float x = 15.5;
float *p; /* equiv: float* p; or float * p; */
p = &x;
*p = 72;
if ( x > 20 )
cout << "Bigger\n";
else
cout << "Smaller\n";

The output is Bigger because x == 72.0. What’s going on?

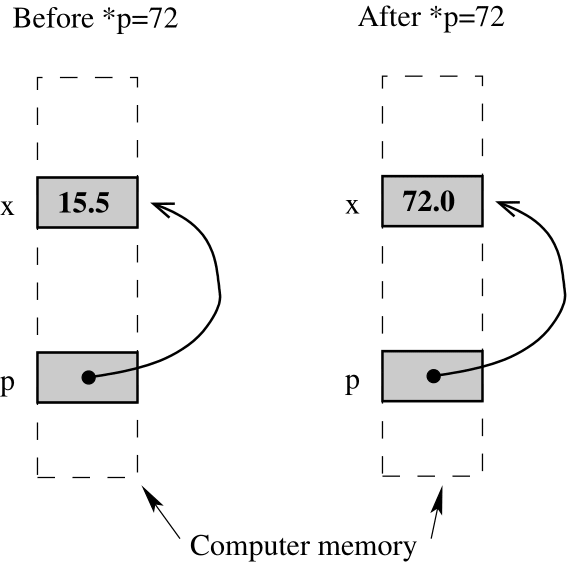

x is an ordinary float, but p is a pointer that can hold the memory address of a float variable. The difference is explained in the picture above.
Every variable is attached to a location in memory. This is where the value of that variable is stored. Hence, we draw a picture with the variable name next to a box that represents the memory location.
Each memory location also has an address, which is itself just an index into the giant array that is the computer memory.
The value stored in a pointer variable is an address in memory. The statement p = &x; takes the address of x’s memory location and stores it (the address) in the memory location associated with p.
Since the value of this address is much less important than the fact that the address is x’s memory location, we depict the address with an arrow.
The statement: *p = 72; causes the computer to get the memory location stored at p, then go to that memory location, and store 72 there. This writes the 72 in x’s location.

Note: *p is an l-value in the above expression.

In the example below, p, s and t are all pointer variables (pointers, for short), but q is NOT. You need the * before each variable name.

int * p, q;
float *s, *t;

There is no initialization of pointer variables in this two-line sequence, so the statement below is dangerous, and may cause your program to crash! (It won’t crash if the uninitialized value happens to be a legal address.)

*p = 15;

The unary (single argument/operand) operator * in the expression *p is the “dereferencing operator”. It means “follow the pointer” *p can be either an l-value or an r-value, depending on which side of the = it appears on.
The unary operator & in the expression &x means “take the memory address of.”
Pointers can be assigned. This just copies memory addresses as though they were values (which they are). Let’s work through the example below (and draw a picture!). What are the values of x and y at the end?

float x=5, y=9;
float *p = &x, *q = &y;
*p = 17.0;
*q = *p;
q = p;
*q = 13.0;

Assignments of integers or floats to pointers and assignments mixing pointers of different types are illegal. Continuing with the above example:

int *r;
r = q; // Illegal: different pointer types;
p = 35.1; // Illegal: float assigned to a pointer

Comparisons between pointers of the form if ( p == q ) or if ( p != q ) are legal and very useful! Less than and greater than comparisons are also allowed. These are useful only when the pointers are to locations within an array.

Like the int type, pointers are not default initialized. We should assume it’s a garbage value, leftover from the previous user of that memory.
Pointers that don’t (yet) point anywhere useful are often explicitly assigned to NULL. – NULL is equal to the integer 0, which is a legal pointer value (you can store NULL in a pointer variable). – But NULL is not a valid memory location you are allowed to read or write. If you try to dereference or follow a NULL pointer, your program will immediately crash. You may see a segmentation fault, a bus error, or something about a null pointer dereference. – NOTE: In C++11, we are encouraged to switch to use nullptr instead of NULL or 0, to avoid some subtle situations where NULL is incorrectly seen as an int type instead of a pointer. For this course we will assume NULL and nullptr are equivalent. – We indicate a NULL or nullptr value in diagrams with a slash through the memory location box.
- Comparing a pointer to NULL is very useful. It can be used to indicate whether or not a pointer variable is pointing at a useable memory location. For example,

if ( p != NULL )
cout << *p << endl.

tests to see if p is pointing somewhere that appears to be useful before accessing and printing the value stored at that location.

But don’t make the mistake of assuming pointers are automatically initialized to NULL

const int n = 10;
double a[n];
int i;
for ( i=0; i<n; ++i )
a[i] = sqrt( double(i) );

Remember: the size of array a is fixed at compile time. STL vectors act like arrays, but they can grow and shrink dynamically in response to the demands of the application.

Arrays may be sorted using std::sort, just like vectors. Pointers are used in place of iterators. For example, if a is an array of doubles and there are n values in the array, then here’s how to sort the values in the array into increasing order:

std::sort( a, a+n );
