Lecture 17 --- Trees, Part I
Review from Lecture 16
- STL set container class (like STL map, but without the pairs!)
Today’s Lecture
- Implementation of ds_set class using binary search trees
- In-order, pre-order, and post-order traversal
17.1 Definition: Binary Trees
- A binary tree (strictly speaking, a “rooted binary tree”) is either empty or is a node that has pointers to two binary trees.

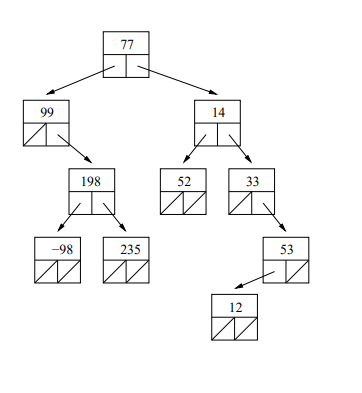

- Here’s a picture of a binary tree storing integer values. In this figure, each large box indicates a tree node, with the top rectangle representing the value stored and the two lower boxes representing pointers. Pointers that are null are shown with a slash through the box.
- The topmost node in the tree is called the root.
- The pointers from each node are called left and right. The nodes they point to are referred to as that node’s (left and right) children.
- The (sub)trees pointed to by the left and right pointers at any node are called the left subtree and right subtree of that node.
- A node where both children pointers are null is called a leaf node.
- A node’s parent is the unique node that points to it. Only the root has no parent.
17.2 Definition: Binary Search Trees
-
A binary search tree (often abbreviated to BST) is a binary tree where at each node of the tree, the value stored at the node is – greater than or equal to all values stored in the left subtree, and
– less than or equal to all values stored in the right subtree.
-

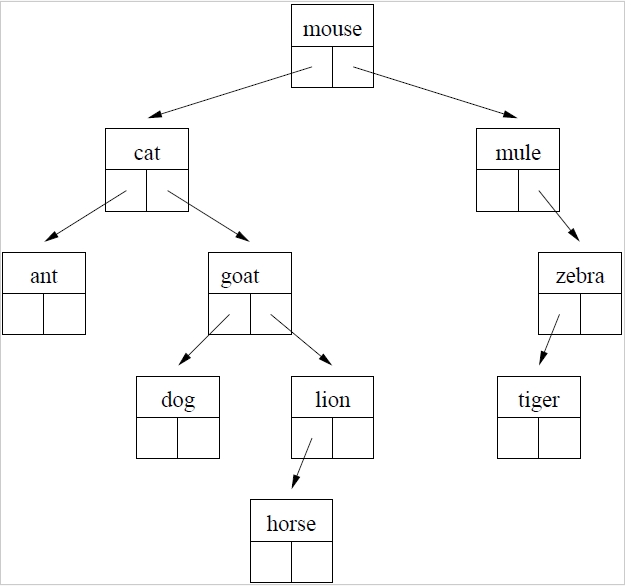

Here is a picture of a binary search tree storing string values.
17.3 Definition: Balanced Trees
- The number of nodes on each subtree of each node in a “balanced” tree is approximately the same. In order to be an exactly balanced binary tree, what must be true about the number of nodes in the tree?
- In order to claim the performance advantages of trees, we must assume and ensure that our data structure remains approximately balanced. (You’ll see much more of this in Intro to Algorithms!)
17.4 Exercise
Consider the following values: 4.5, 9.8, 3.5, 13.6, 19.2, 7.4, 11.7
-
Draw a binary tree with these values that is NOT a binary search tree.
-
Draw two different binary search trees with these values. Important note: This shows that the binary search tree structure for a given set of values is not unique!
-
How many exactly balanced binary search trees exist with these numbers? How many exactly balanced binary trees exist with these numbers?
17.5 Beginning our implementation of ds set: The Tree Node Class
- Here is the class definition for nodes in the tree. We will use this for the tree manipulation code we write.
template <class T> class TreeNode {
public:
TreeNode() : left(NULL), right(NULL) {}
TreeNode(const T& init) : value(init), left(NULL), right(NULL) {}
T value;
TreeNode* left;
TreeNode* right;
};
- Note: Sometimes a 3rd pointer — to the parent TreeNode — is added.
17.6 Exercises
-
Write a templated function to find the smallest value stored in a binary search tree whose root node is pointed to by p.
-
Write a function to count the number of odd numbers stored in a binary tree (not necessarily a binary search tree) of integers. The function should accept a TreeNode pointer as its sole argument and return an integer. Hint: think recursively!
17.7 ds_set and Binary Search Tree Implementation
- A partial implementation of a set using a binary search tree is in the code attached. We will continue to study this implementation in Lab 10 & the next lecture.
- The increment and decrement operations for iterators have been omitted from this implementation. Next week in lecture we will discuss a couple strategies for adding these operations.
- We will use this as the basis both for understanding an initial selection of tree algorithms and for thinking about how standard library sets really work.
17.8 ds_set: Class Overview
-
There is two auxiliary classes, TreeNode and tree_iterator. All three classes are templated.
-
The only member variables of the ds_set class are the root and the size (number of tree nodes).
-
The iterator class is declared internally, and is effectively a wrapper on the TreeNode pointers. – Note that operator* returns a const reference because the keys can’t change.
– The increment and decrement operators are missing (we’ll fill this in next week in lecture!).
-
The main public member functions just call a private (and often recursive) member function (passing the root node) that does all of the work.
-
Because the class stores and manages dynamically allocated memory, a copy constructor, operator=, and destructor must be provided.
17.9 Exercises
-
Provide the implementation of the member function ds_set::begin. This is essentially the problem of finding the node in the tree that stores the smallest value.
-
Write a recursive version of the function find.
17.10 In-order, Pre-Order, Post-Order Traversal
-
One of the fundamental tree operations is “traversing” the nodes in the tree and doing something at each node. The “doing something”, which is often just printing, is referred to generically as “visiting” the node.
-
There are three general orders in which binary trees are traversed: pre-order, in-order and post-order. In order to explain these, let’s first draw an “exactly balanced” binary search tree with the elements 1-7: – What is the in-order traversal of this tree? Hint: it is monotonically increasing, which is always true for an in-order traversal of a binary search tree!
– What is the post-order traversal of this tree? Hint, it ends with “4” and the 3rd element printed is “2”.
– What is the pre-order traversal of this tree? Hint, the last element is the same as the last element of the in-order traversal (but that is not true in general! why not?)
